Your Position: Home > Wire Terminals > Copper Terminals > VINYL-INSULATED (EASY ENTRY) RING TERMINALS(NON-BRAZED SEAM)

Material:
High-Conductivity Wrought Copper

Finish:
Electro Tin Plate

生成PDF

Cat.No
Stud(Metric)
Application for Cable Size
- mm²
- A.W.G
Stripped Length（mm)

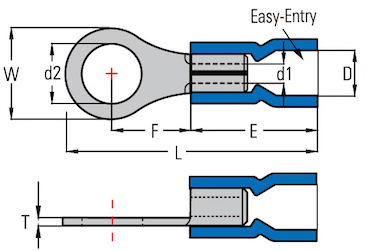

Dimension(mm)
- D
- E
- L
- T
- F
- W
- d1
- d2

REV2232
3
0.5-1.5
22-16
7.5-8.0
4
11.2
18.7
0.75
4.80
5.5
1.7
3.2
$0.0

REV2237S
3.5
0.5-1.5
22-16
7.5-8.0
4
11.2
18.7
0.75
4.80
5.5
1.7
3.7
$0.0

REV2237M
3.5
0.5-1.5
22-16
7.5-8.0
4
11.2
20.6
0.75
6.30
6.6
1.7
3.7
$0.0

REV2237L
3.5
0.5-1.5
22-16
7.5-8.0
4
11.2
22
0.75
7.00
8
1.7
3.7
$0.0

REV2204S
4
0.5-1.5
22-16
7.5-8.0
4
11.2
20.6
0.75
6.30
6.6
1.7
4.3
$0.0

REV2204L
4
0.5-1.5
22-16
7.5-8.0
4
11.2
22
0.75
7.00
8
1.7
4.3
$0.0

REV2205
5
0.5-1.5
22-16
7.5-8.0
4
11.2
22
0.75
7.00
8
1.7
5.3
$0.0

REV2205L
5
0.5-1.5
22-16
7.5-8.0
4
11.2
27.9
0.75
11.00
11.8
1.7
5.3
$0.0

REV2206
6
0.5-1.5
22-16
7.5-8.0
4
11.2
26.7
0.75
11.00
11.8
1.7
6.4
$0.0

REV2208
8
0.5-1.5
22-16
7.5-8.0
4
11.2
26.7
0.75
11.00
11.8
1.7
8.4
$0.0

REV2210
10
0.5-1.5
22-16
7.5-8.0
4
11.2
31.7
0.75
13.90
13.6
1.7
10.5
$0.0

REV2232
3
1.5-2.5
16-14
7.5-8.0
4.5
11.5
19.3
0.8
4.70
6.6
2.3
3.2
$0.0

REV2237S
3.5
1.5-2.5
16-14
7.5-8.0
4.5
11.5
19.3
0.8
4.70
6.6
2.3
3.7
$0.0

REV2237M
3.5
1.5-2.5
16-14
7.5-8.0
4.5
11.5
21
0.8
6.30
6.6
2.3
3.7
$0.0

REV2237L
3.5
1.5-2.5
16-14
7.5-8.0
4.5
11.5
23.3
0.8
7.40
8.5
2.3
3.7
$0.0

REV2204S
4
1.5-2.5
16-14
7.5-8.0
4.5
11.5
21
0.8
6.30
6.6
2.3
4.3
$0.0

REV2204L
4
1.5-2.5
16-14
7.5-8.0
4.5
11.5
23.3
0.8
7.80
8.5
2.3
4.3
$0.0

REV2205S
5
1.5-2.5
16-14
7.5-8.0
4.5
11.5
23.3
0.8
7.80
8.5
2.3
5.3
$0.0

REV2205L
5
1.5-2.5
16-14
7.5-8.0
4.5
11.5
23.3
0.8
7.30
9.6
2.3
5.3
$0.0

REV2206
6
1.5-2.5
16-14
7.5-8.0
4.5
11.5
28.2
0.8
11.00
12
2.3
6.4
$0.0

REV2208
8
1.5-2.5
16-14
7.5-8.0
4.5
11.5
28.2
0.8
11.00
12
2.3
8.4
$0.0

REV2210
10
1.5-2.5
16-14
7.5-8.0
4.5
11.5
32
0.8
13.60
13.6
2.3
10.5
$0.0

REV1637
3.5
4-6
12-10
8.5-9.0
6.3
14.2
23.7
1
6.10
7.2
3.4
3.7
$0.0

REV1604S
4
4-6
12-10
8.5-9.0
6.3
14.2
23.8
1
6.10
7.2
3.4
4.3
$0.0

REV1604L
4
4-6
12-10
8.5-9.0
6.3
14.2
27.2
1
8.30
9.5
3.4
4.3
$0.0

REV1605
5
4-6
12-10
8.5-9.0
6.3
14.2
27.2
1
8.30
9.5
3.4
5.3
$0.0

REV1606
6
4-6
12-10
8.5-9.0
6.3
14.2
30.7
1
10.50
12
3.4
6.4
$0.0

REV1608
8
4-6
12-10
8.5-9.0
6.3
14.2
35.2
1
13.50
15
3.4
8.4
$0.0

REV1610
10
4-6
12-10
8.5-9.0
6.3
14.2
28
1
13.50
15
3.4
10.5
$0.0

REV1612
12
4-6
12-10
8.5-9.0
6.3
14.2
39.8
1
16.00
19.2
3.4
13
$0.0
