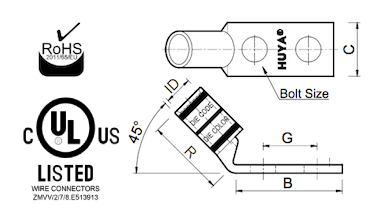

Two-Hole Lugs-45° 600V to 35KV
Material:
High-Conductivity Wrought Copper
Finish:
Electro Tin Plate
Manufacturer
Color
Code
Tools Model
T&B
Black
45
TBM5 TBM8
Panduit
Black
P45
CT-720 CT-920
Burndy
Black
13
MY29 Y644M
Celestra
Black
45
A45
生成PDF
Prev
Next
共/1页
Cat.No
Wire Size
Code
Flex Class G, H, I, K, M
Dimension (in.)
Bolt Size
B
C
R
G
ID
DB205678F
2/0AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
5/16
1.63
0.83
1.00
0.88
0.44
$1.0
DB203801F
2/0AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
3/8
1.93
0.83
1.00
1.00
0.44
$1.0
DB201201F
2/0AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/2
2.81
0.83
1.00
1.00
0.44
$1.0
LB201458F
2/0AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/4
1.25
0.83
1.35
0.63
0.44
$1.0
LB201434F
2/0AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/4
1.31
0.81
1.35
0.75
0.44
$1.0
LB203801F
2/0AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
3/8
1.81
0.83
1.35
1.00
0.44
$1.0
LB203801FP
2/0AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
3/8
1.81
0.83
1.35
1.00
0.44
$1.0
LB201243F
2/0AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/2
2.81
0.83
1.35
1.75
0.44
$1.0
DB201458F-250
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/4
1.41
0.85
1.28
0.62
0.45
$1.0
DB201434F-250
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/4
1.53
0.85
1.28
0.75
0.45
$1.0
DB205678F-250
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
5/16
1.66
0.85
1.28
0.88
0.45
$1.0
DB203801F-250
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
3/8
1.84
0.85
1.28
1.00
0.45
$1.0
DB201243F-250
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/2
3.01
0.85
1.28
1.75
0.45
$1.0
DB205678F-260
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
5/16
1.57
0.83
1.24
0.88
0.44
$1.0
DB201243F-260
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/2
2.83
0.83
1.24
1.75
0.44
$1.0
DB201458F-260
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/4
1.26
0.83
1.24
0.62
0.44
$1.0
DB201401F-260
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/4
1.64
0.83
1.24
1.00
0.44
$1.0
DB201434F-260
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/4
1.39
0.83
1.24
0.75
0.44
$1.0
DB203801F-260
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
3/8
1.83
0.83
1.24
1.00
0.44
$1.0
DB201458F-251
2/0 AWG
325/24 2/0 Weld
1/4
1.41
0.96
1.13
0.62
0.51
$1.0
DB201434F-251
2/0 AWG
325/24 2/0 Weld
1/4
1.53
0.96
1.13
0.75
0.51
$1.0
DB205601F-251
2/0 AWG
325/24 2/0 Weld
5/16
1.78
0.96
1.13
1.00
0.51
$1.0
DB203801F-251
2/0 AWG
325/24 2/0 Weld
3/8
1.84
0.96
1.13
1.00
0.51
$1.0
DB201201F-251
2/0 AWG
325/24 2/0 Weld
1/2
2.09
0.96
1.13
1.00
0.51
$1.0
DB201243F-251
2/0 AWG
325/24 2/0 Weld
1/2
3.01
0.96
1.13
1.75
0.51
$1.0
DB201458F-261
2/0 AWG
325/24 2/0 Weld
1/4
1.26
0.93
1.11
0.62
0.50
$1.0
DB201434F-261
2/0 AWG
325/24 2/0 Weld
1/4
1.39
0.93
1.11
0.75
0.50
$1.0
DB205601F-261
2/0 AWG
325/24 2/0 Weld
5/16
1.70
0.93
1.11
1.00
0.50
$1.0
DB203801F-261
2/0 AWG
325/24 2/0 Weld
3/8
1.83
0.93
1.11
1.00
0.50
$1.0
DB201201F-261
2/0 AWG
325/24 2/0 Weld
1/2
2.08
0.93
1.11
1.00
0.50
$1.0
DB201243F-261
2/0 AWG
325/24 2/0 Weld
1/2
2.83
0.93
1.11
1.75
0.50
$1.0
LB201458F-250
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/4
1.41
0.85
1.79
0.63
0.45
$1.0
LB201434F-250
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/4
1.53
0.85
1.79
0.75
0.45
$1.0
LB205601F-250
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
5/16
1.78
0.85
1.79
1.00
0.45
$1.0
LB203801F-250
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
3/8
1.84
0.85
1.79
1.00
0.45
$1.0
LB201201F-250
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/2
2.09
0.85
1.79
1.00
0.45
$1.0
LB201243F-250
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/2
3.01
0.85
1.79
1.75
0.45
$1.0
LB201458FP-250
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/4
1.41
0.85
1.79
0.63
0.45
$1.0
LB201434FP-250
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/4
1.53
0.85
1.79
0.75
0.45
$1.0
LB205601FP-250
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
5/16
1.78
0.85
1.79
1.00
0.45
$1.0
LB203801FP-250
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
3/8
1.84
0.85
1.79
1.00
0.45
$1.0
LB201201FP-250
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/2
2.09
0.85
1.79
1.00
0.45
$1.0
LB201243FP-250
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/2
3.01
0.85
1.79
1.75
0.45
$1.0
LB201243F-260
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/2
2.83
0.83
1.80
1.75
0.44
$1.0
LB201458F-260
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/4
1.26
0.83
1.80
0.62
0.44
$1.0
LB201434F-260
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/4
1.39
0.83
1.80
0.75
0.44
$1.0
LB203801F-260
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
3/8
1.83
0.83
1.80
1.00
0.44
$1.0
LB201243FP-260
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/2
2.83
0.83
1.80
1.75
0.44
$1.0
LB201458FP-260
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/4
1.26
0.83
1.80
0.62
0.44
$1.0
LB201434FP-260
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
1/4
1.39
0.83
1.80
0.75
0.44
$1.0
LB203801FP-260
2/0 AWG
125 Navy 1/0 Weld 275/24 = 111 kcmil 133/.0282
3/8
1.83
0.83
1.80
1.00
0.44
$1.0
LB201458FP-251
2/0 AWG
325/24 2/0 Weld
1/4
1.41
0.96
1.80
0.63
0.51
$1.0
LB201434FP-251
2/0 AWG
325/24 2/0 Weld
1/4
1.53
0.96
1.80
0.75
0.51
$1.0
LB203801FP-251
2/0 AWG
325/24 2/0 Weld
3/8
1.84
0.96
1.80
1.00
0.51
$1.0
LB201243FP-251
2/0 AWG
325/24 2/0 Weld
1/2
3.01
0.96
1.80
1.75
0.51
$1.0
LB201458FP-261
2/0 AWG
325/24 2/0 Weld
1/4
1.27
0.93
1.80
0.63
0.50
$1.0
LB201434FP-261
2/0 AWG
325/24 2/0 Weld
1/4
1.39
0.93
1.80
0.75
0.50
$1.0
LB203801FP-261
2/0 AWG
325/24 2/0 Weld
3/8
1.83
0.93
1.80
1.00
0.50
$1.0
LB201243FP-261
2/0 AWG
325/24 2/0 Weld
1/2
2.83
0.93
1.80
1.75
0.50
$1.0
Total
59
records
